Electric swing lead door

Electric swing lead door
Electric swing lead doors are classified into single-leaf and double-leaf electric swing lead doors according to their opening method. The door body is filled with high-quality lead plates, with a uniform and dense protective layer that effectively shields against X-rays, gamma rays, and other radiation leaks, ensuring environmental safety. Equipped with a dedicated electric door opener and intelligent control system, it supports remote control, sensor, button, and interlocking methods. It operates smoothly and quietly and features anti-pinch and slow-stop safety protection functions.
These products are widely used in hospital radiology departments, CT rooms, operating rooms, industrial flaw detection rooms, and nuclear medicine facilities, achieving automated protection and convenient passage.

Product Details

电动双开平开门1

电动单开平开门1

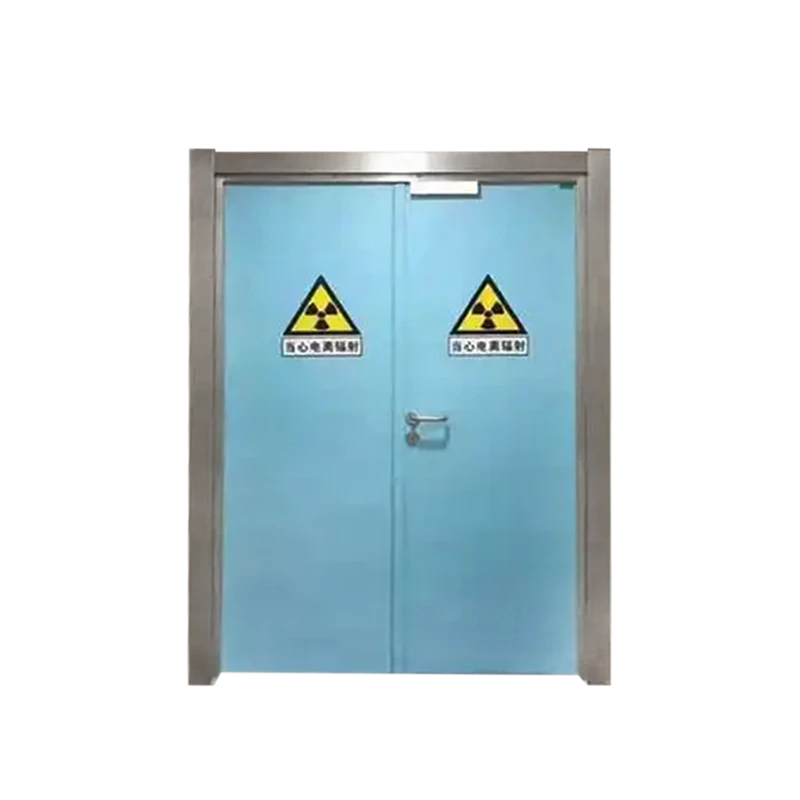

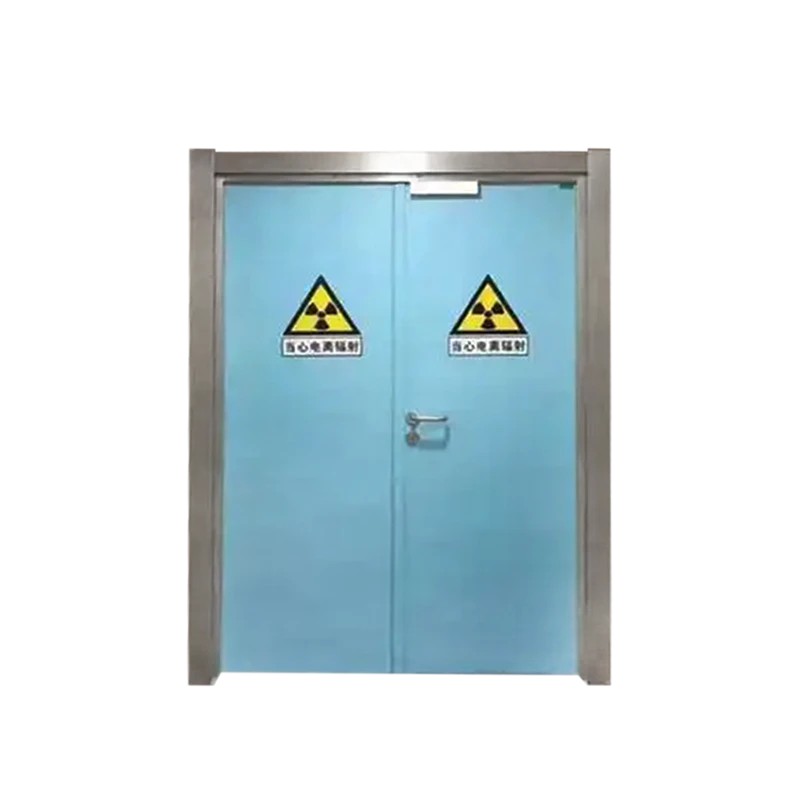

Double-leaf Electric Swing Lead Door

The double-leaf type adopts a bidirectional opening structure, suitable for larger passageways, and offers efficient opening and closing.

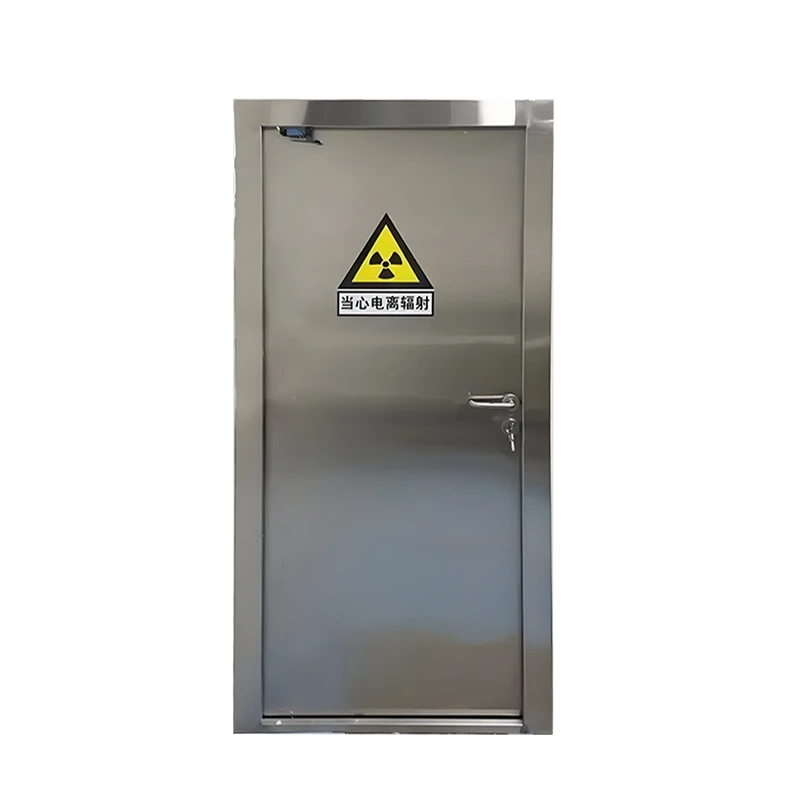

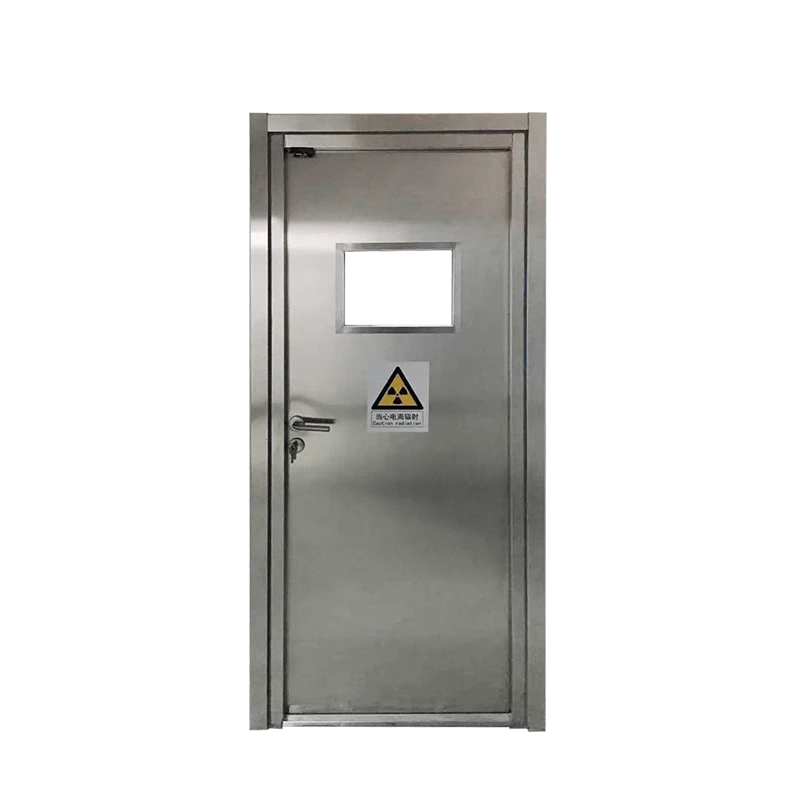

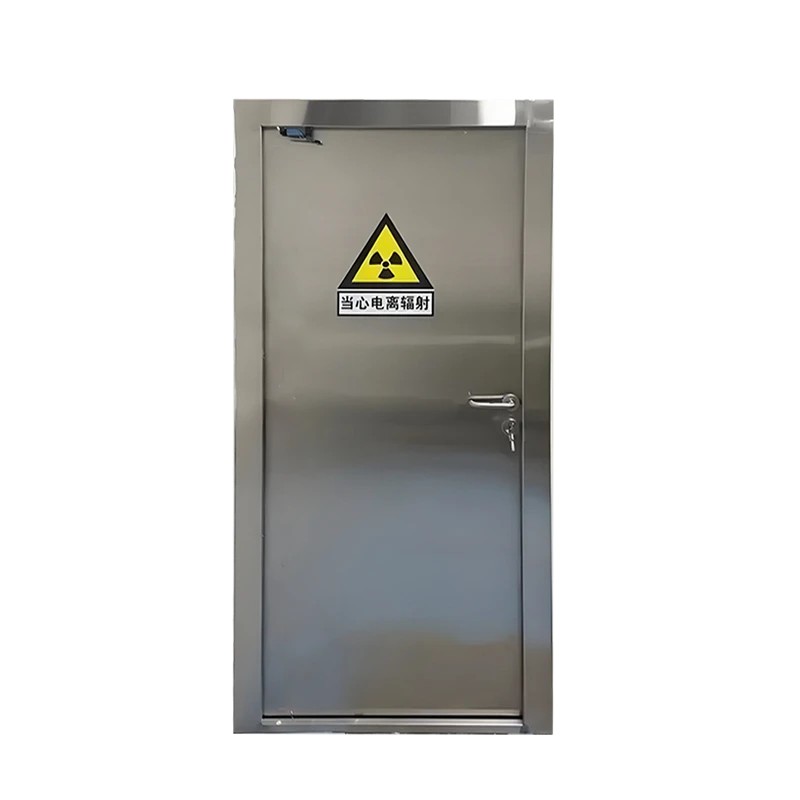

Single-leaf Electric Swing Lead Door

The single-leaf type is suitable for standard doorways, with the door opening outwards or inwards from one side.

Product Parameters
Product nameElectric swing lead door
Surface-mountSurface-mount full stainless steel sheets or ivory anti-static plate spliced with wire-drawing stainless steel sheets,with stainless steel bindings.stainless steel frame ,one-off forming at high temperature and high pressur.
Width of door/mmSingle leaf:800mm/900mm/950mm
Double leaf:1200mm/1350mm
Unequal double leaf:1500mm/1800mm
Height of door/mm2100mm
Door opening width/mmSingle leaf:1300mm-3200mmDouble leaf:3300mm-5300mm
Unequal double leaf:700mm-2000mm
Wall thickness≥50mm
Way to open doorautomatic foot sensor, password or press-button
ApplicationApplication of a plurality of intelligent and protection units capable of automatic setting of control process.
Use of a safety beam to ensure safe access of persons.
Professional mechanical drive design featuring long service life,large torque and extremely low noisy.
X-ray Shielding ,Open with hand/feet sensor switch or keypad.

Product Display

Lead-door_02

Factory Inventory Display

Lead-door_04

Product Application

application
